What Determines Injection Depth?
Injection depth is not determined by needle length alone. It is determined by the anatomical layer being targeted, the tissues lying above and below that target, the angle and direction of entry, and the way the practitioner’s supporting hand changes the tissue before the needle is introduced.
This is why the same needle can reach a different anatomical plane in two patients—or even in the same patient—depending on how the tissue is stabilised, lifted, pinched or compressed. Safe and predictable treatment requires the practitioner to understand both facial layering and the mechanical effect of the non-injecting hand.
Key Takeaways
- Injection depth should be selected according to the anatomical structure or tissue plane being treated.
- Facial muscles do not all sit at the same depth, and a single depth rule cannot be applied across the face.
- The supporting hand can lift, fold, compress or stabilise tissue, changing the effective depth of the needle tip.
- A wide pinch generally creates a thicker tissue fold, while a closer pinch may reduce the amount of tissue beneath the needle.
- Depth must be considered together with speed, anatomy, layer, angle, dose and support—the principles described in the SALADS injection framework.
Injection Depth Begins With the Target Layer
Before selecting a needle angle or deciding how far to advance, the practitioner should first identify the structure being treated. The question is not simply, “How deep should I inject?” It is:
Clinical Question
Which anatomical structure am I targeting, where does it sit in this patient, and what tissues must the needle pass through to reach it?

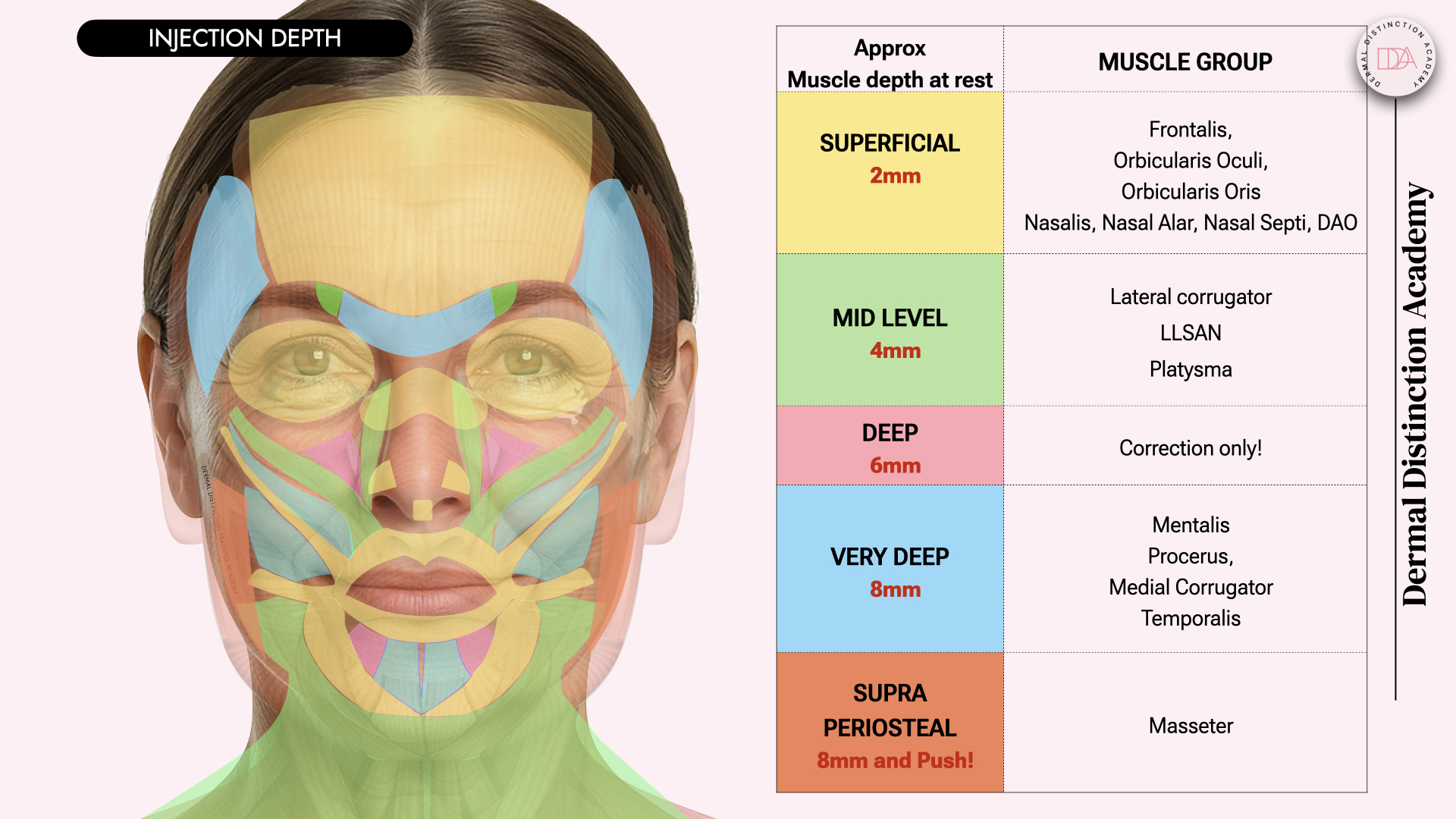

The face is composed of skin, superficial fat, fascia, muscles, deep fat, retaining structures, vessels, nerves and bone. These layers vary considerably between facial regions. Some muscles sit close to the skin, while others are deeper or have superficial and deep components.
For example, the frontalis, orbicularis oculi and orbicularis oris are generally treated as relatively superficial structures. The medial corrugator, procerus, mentalis and temporalis may require a deeper approach depending on the specific target and the patient’s anatomy. The masseter is a thick muscle and often requires a deeper intramuscular or bone-referenced technique.
These descriptions are anatomical guides rather than fixed measurements. Tissue thickness, facial shape, age, sex, muscle bulk, previous treatment and the degree of tissue compression can all change the distance between the skin surface and the intended target.
Why Muscle Layering Matters
Facial muscles overlap, interdigitate and change depth as they travel across the face. A muscle may be superficial in one region and deeper in another. Some muscles also lie beneath other muscles or soft-tissue compartments.
This means an injection intended for one muscle can unintentionally affect a neighbouring structure if the needle is placed at the wrong depth or direction. The consequence may be reduced efficacy, unwanted diffusion, altered expression or functional impairment.
Superficial Targets
Superficial muscles require a controlled, shallow approach. Advancing too deeply may place product beneath the intended muscle or closer to deeper structures. The practitioner must also account for the fact that skin thickness and subcutaneous tissue vary across the forehead, periocular region and perioral area.
Deeper Targets
Deeper muscles may require the needle to pass through superficial tissues before reaching the treatment plane. In these areas, an understanding of bone, foramina, vessels and adjacent muscles becomes increasingly important. “Deep” should never mean advancing without a defined anatomical endpoint.
Layered or Overlapping Targets
Regions such as the glabella and lower face contain overlapping muscles with different actions. Treatment planning must account for which component is being targeted, whether the injection is intended to remain superficial or reach a deeper belly, and how the chosen depth may influence nearby muscles.

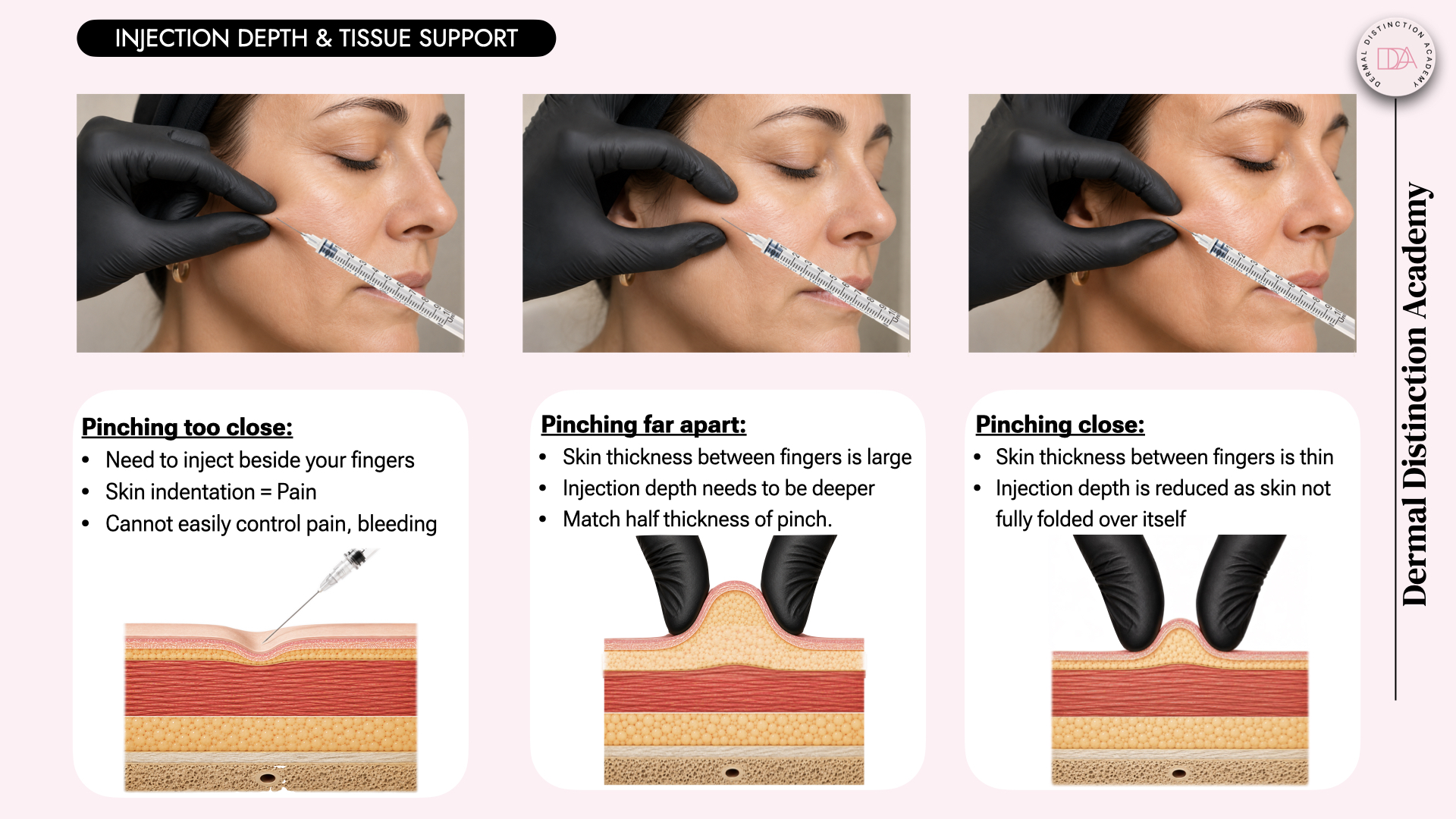

The Supporting Hand Changes Injection Depth
The non-injecting hand is not passive. It changes the geometry of the tissue. When the practitioner pinches, lifts or compresses the treatment area, the skin and underlying tissue are repositioned relative to the needle.
This means the apparent depth marked on the needle is not always the same as the effective depth within the tissue. The width of the pinch, the pressure applied and the position of the fingers can all change how much tissue lies beneath the needle tip.
Pinching Too Close to the Injection Site
When the fingers are placed too close together, the practitioner may create a narrow indentation rather than a stable tissue fold. The needle may need to enter beside the fingers rather than through a controlled central plane. This can make it more difficult to manage discomfort, bleeding and tissue movement.
A Wider Pinch
A wider pinch lifts a larger volume of tissue. The fold between the fingers becomes thicker, which may mean the needle must travel further to reach the intended layer. As a practical guide, the practitioner should consider the thickness of the elevated tissue and avoid assuming that a familiar needle insertion depth will reach the same structure.
A Closer, Controlled Pinch
A closer but controlled pinch can reduce the amount of tissue beneath the needle by bringing the target closer to the surface. However, excessive compression can distort anatomy, obscure landmarks or unintentionally move the target away from its resting position.
Clinical Principle
Your supporting hand determines the tissue configuration into which you inject. Depth must therefore be judged after the tissue has been stabilised—not before.
Supporting Hand Functions Beyond Depth
The supporting hand does more than alter tissue thickness. It can improve accuracy, reduce discomfort and help the practitioner control the treatment field.
- Stabilisation: reduces movement as the needle enters and while product is delivered.
- Tissue positioning: brings the target into a more predictable position.
- Depth control: changes the amount of tissue between the skin surface and the anatomical target.
- Comfort: controlled pressure and support may reduce discomfort and sudden patient movement.
- Bleeding control: the non-injecting hand can provide immediate compression when required.
- Anatomical guidance: the fingers may help guide placement away from a foramen or other structure.
- Product control: tissue support may influence where product is placed and how the practitioner contains or directs treatment.
Other Factors That Influence Effective Injection Depth
Target anatomy and tissue support are central, but they do not act alone. Several additional factors influence where the needle tip ultimately sits.
| Factor | How It Changes Depth |
|---|---|
| Needle angle | A perpendicular approach advances more directly through tissue, while an oblique angle travels a longer path within superficial layers. |
| Needle length | Needle length limits the maximum possible reach but does not confirm that the intended structure has been reached. |
| Patient anatomy | Skin, fat, muscle bulk and skeletal contour vary between patients and facial regions. |
| Muscle contraction | Contracting a muscle may make it easier to identify but can also change its thickness and position compared with rest. |
| Tissue compression | Pressure from the supporting hand may reduce tissue thickness and bring deeper targets closer to the surface. |
| Previous treatment | Filler, scar tissue, surgery or fibrosis may alter normal tissue planes and resistance. |
| Product and treatment goal | The required plane differs depending on whether the practitioner is targeting muscle, dermis, subcutaneous tissue, deep fat or bone. |
Depth Is Part of the SALADS Framework
Injection depth should never be considered in isolation. It forms part of the broader SALADS framework used by Dermal Distinction Academy to structure injection technique:
- S — Speed: the speed of needle entry and product delivery.
- A — Anatomy: the structures, danger zones and individual variation beneath the treatment area.
- L — Layer and depth: the anatomical plane required to reach the intended target.
- A — Angle: the direction of travel and how this affects the needle’s path through tissue.
- D — Dose, drug and dilution: the product selected and the amount delivered.
- S — Support: the role of the non-injecting hand in stabilising tissue, guiding placement and controlling depth.
The two “S” concepts at the beginning and end of SALADS are especially relevant to depth. Speed affects control during entry and delivery, while support changes the tissue configuration. Layer and angle then determine the path to the target.
A Practical Sequence for Selecting Depth
- Define the treatment objective. Identify whether the goal involves muscle, dermis, fat, structural support or bone.
- Identify the target anatomy. Consider the target’s resting depth, thickness, boundaries and neighbouring structures.
- Assess the individual patient. Examine tissue thickness, muscle bulk, facial shape, previous treatment and anatomical variation.
- Position the supporting hand. Stabilise or lift the tissue while observing how the target changes relative to the surface.
- Select the needle angle and direction. Plan the route to the target rather than focusing only on the amount of needle inserted.
- Reassess during injection. Tissue resistance, patient movement and anatomical feedback may require technique modification.
- Observe the clinical response. Do not continue automatically if the tissue response is unexpected.
Common Errors in Depth Selection
- Using a memorised millimetre measurement without assessing the patient
- Assuming every part of a muscle lies at the same depth
- Ignoring the effect of a pinch or tissue compression
- Advancing deeply without a defined anatomical endpoint
- Using needle length as proof of tissue-plane placement
- Failing to account for the angle of entry
- Allowing the supporting hand to distort landmarks unintentionally
- Treating the injection hand as the only hand responsible for precision
Frequently Asked Questions
Is there one correct injection depth for each facial muscle?
No. Published measurements and anatomical diagrams provide useful guidance, but individual anatomy varies. The depth also changes with facial region, muscle thickness, patient position, contraction and tissue support.
Does inserting the full needle guarantee a deep injection?
No. The effective depth depends on the needle angle, tissue thickness and how the tissue is being lifted or compressed. Needle length is only one part of the calculation.
Can the supporting hand make an injection more superficial?
Yes. A controlled pinch or compression may bring the target closer to the skin surface. A broad lift may create a thicker tissue fold and increase the distance to the target.
Why is depth important for botulinum toxin treatment?
Botulinum toxin should be placed in relation to the intended muscle and treatment goal. Incorrect depth may reduce efficacy or affect neighbouring muscles, potentially altering expression or function.
How does SALADS help with injection depth?
SALADS requires the practitioner to consider anatomy, layer, angle, dose and supporting-hand position together. It discourages isolated technique decisions and promotes a structured approach to each injection.
Quick Summary
- The intended anatomical target is the starting point for depth selection.
- Muscles and tissue planes vary in depth across the face and between patients.
- The supporting hand changes tissue thickness, target position and needle control.
- Needle angle, patient anatomy, muscle state and previous treatment also affect effective depth.
- Depth should be planned within the complete SALADS framework rather than used as an isolated measurement.
Build Greater Precision Into Every Injection
Accurate injection depth requires more than knowing how many millimetres of needle to insert. It requires a three-dimensional understanding of facial anatomy, awareness of tissue layering and deliberate use of the supporting hand.
Dermal Distinction Academy teaches practitioners to integrate anatomy, assessment, technique and complication prevention so that every injection has a defined target and purpose.
